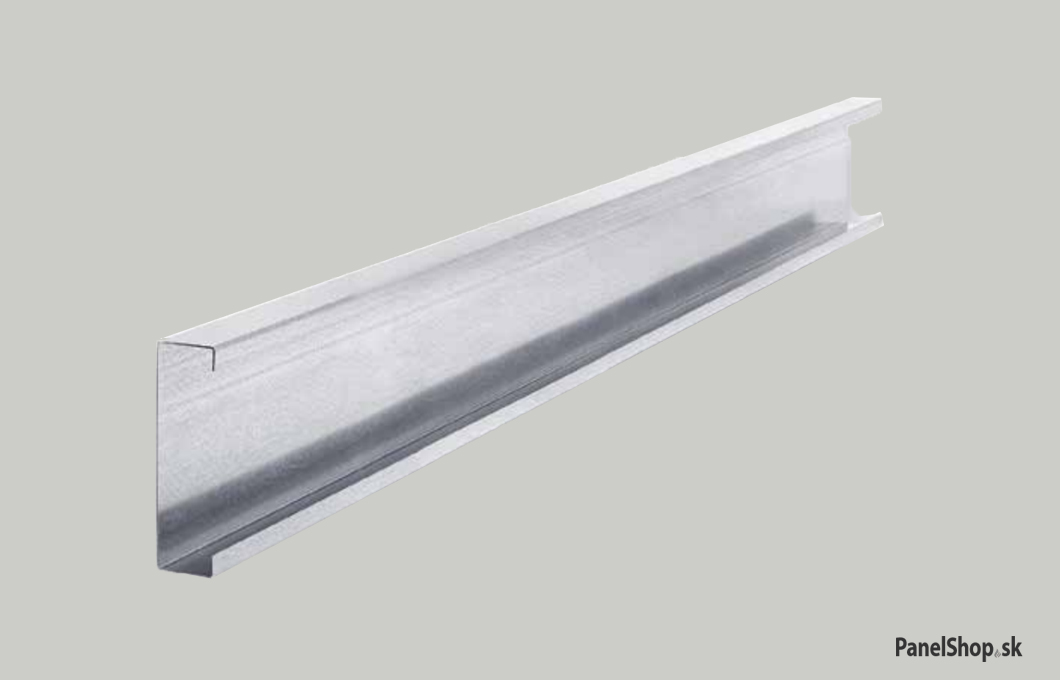

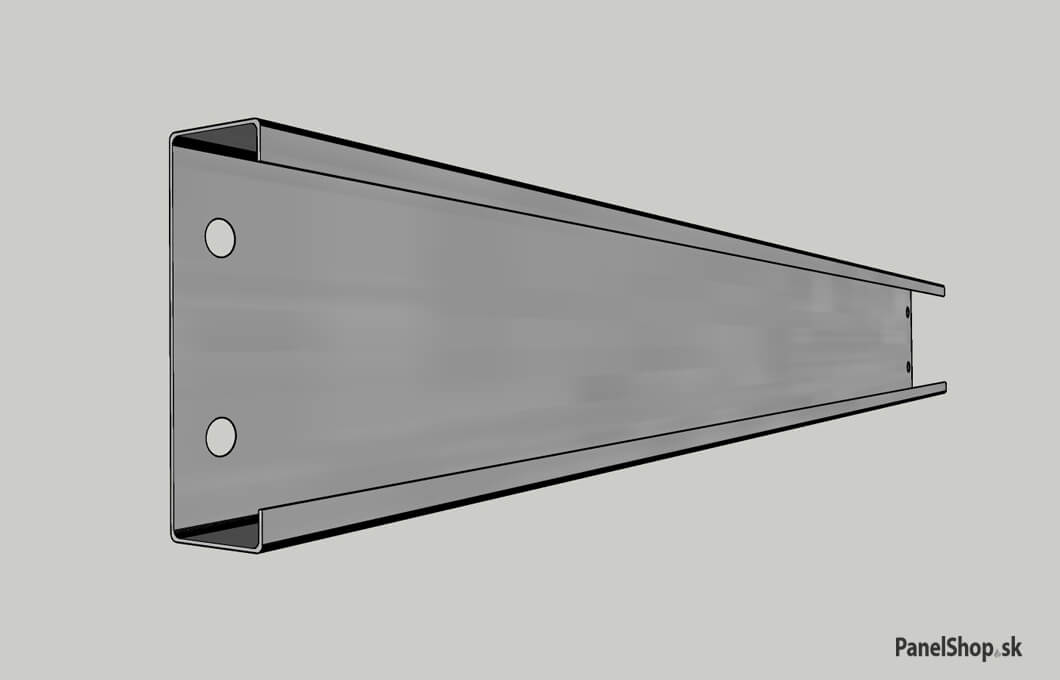

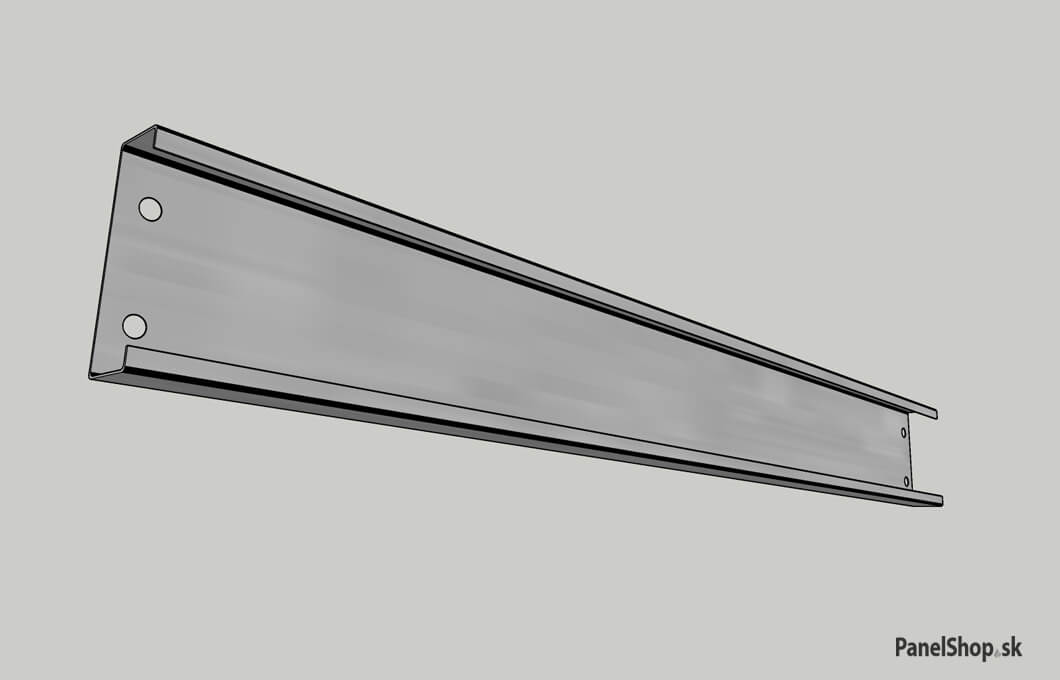

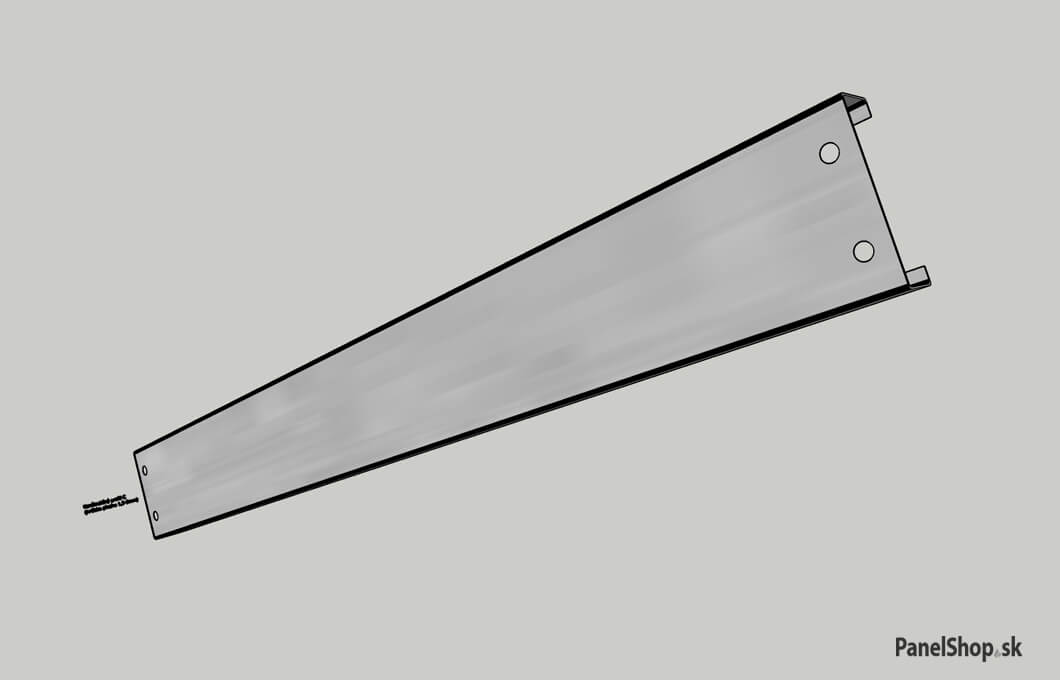

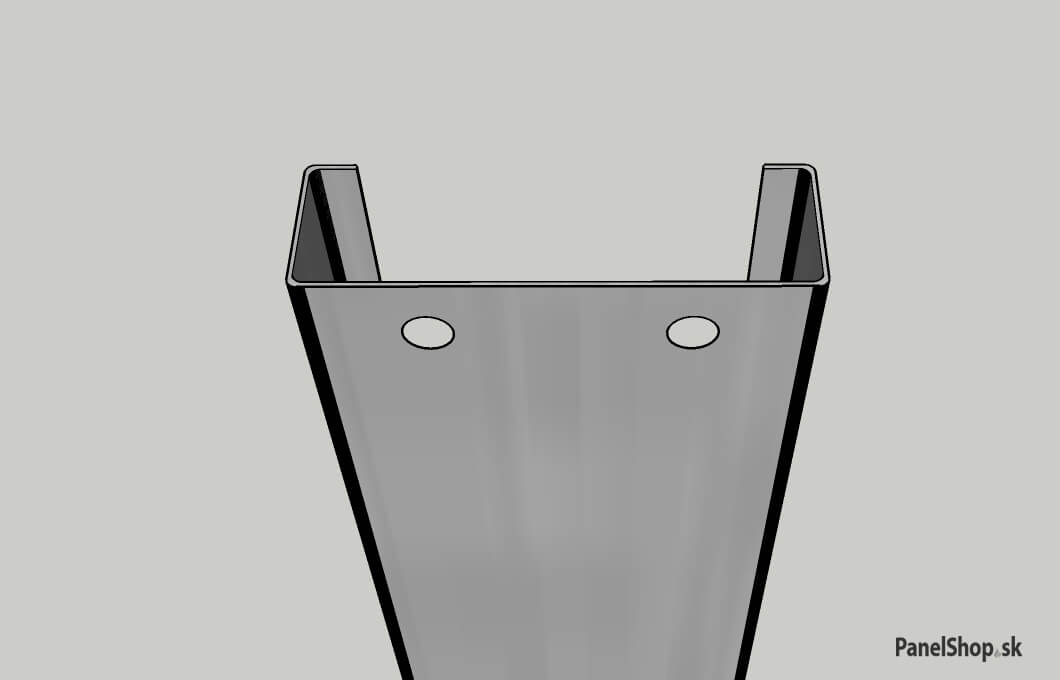

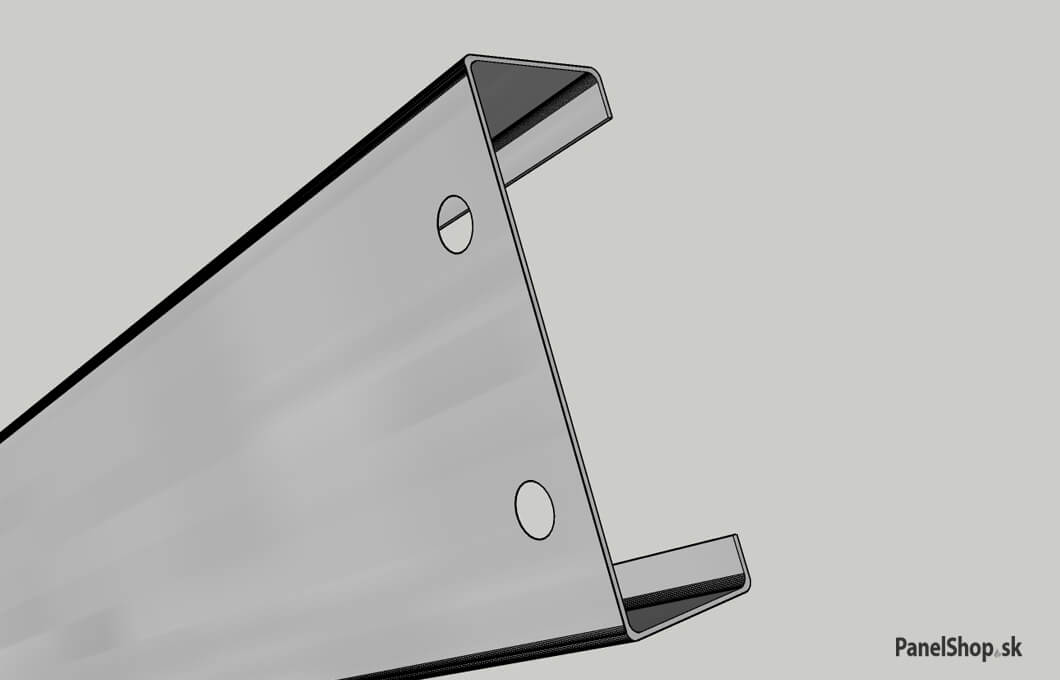

(PKP02) Structural C profile (thin-walled purlins)

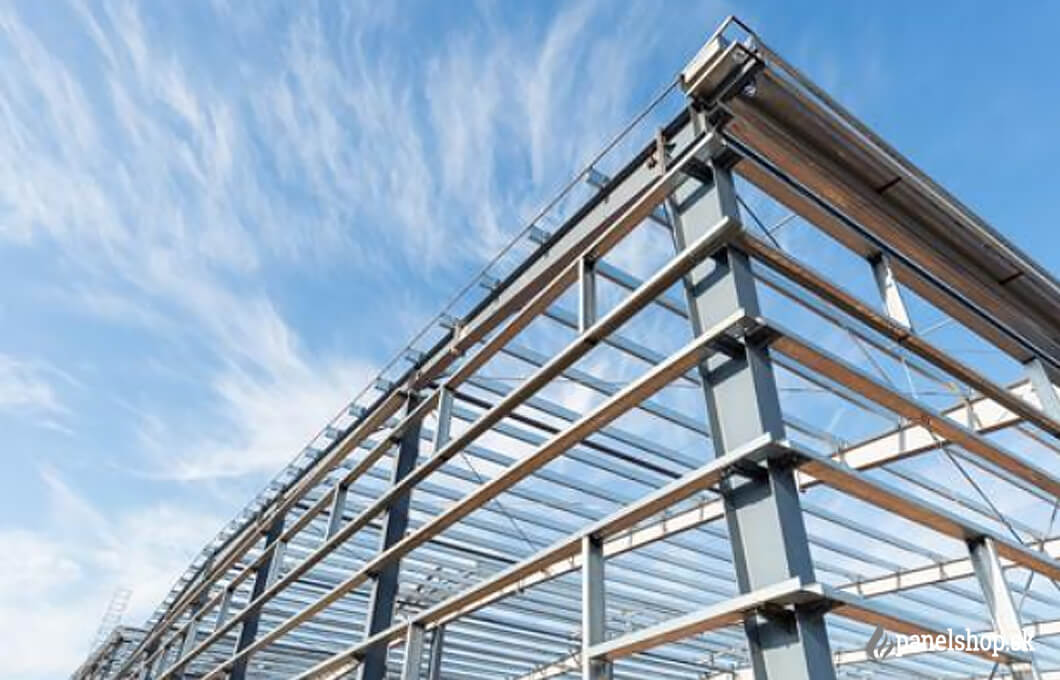

Thin-walled purlins are intended for use primarily as purlin ceilings, roofs and walls of steel halls. Thin-walled profiles are available as standardized Z, C and Sigma profiles. Pre-punched holes allow precise and quick assembly. These profiles are used as prisons and wings for all types of halls.
€2.2 (without VAT) / 1kg / (the price is indicative)
Delivery time – 1-3 weeks
Product code: PKP02_XXX
We offer these profile variants
An important parameter when choosing is the height H of the structural profile and the required sheet thickness, other parameters (S1, S2, C) depend on these data. The minimum length is 1.5m and the maximum is 15m. Steel type is S350GD + Zinc.
Swipe left on mobiles ›

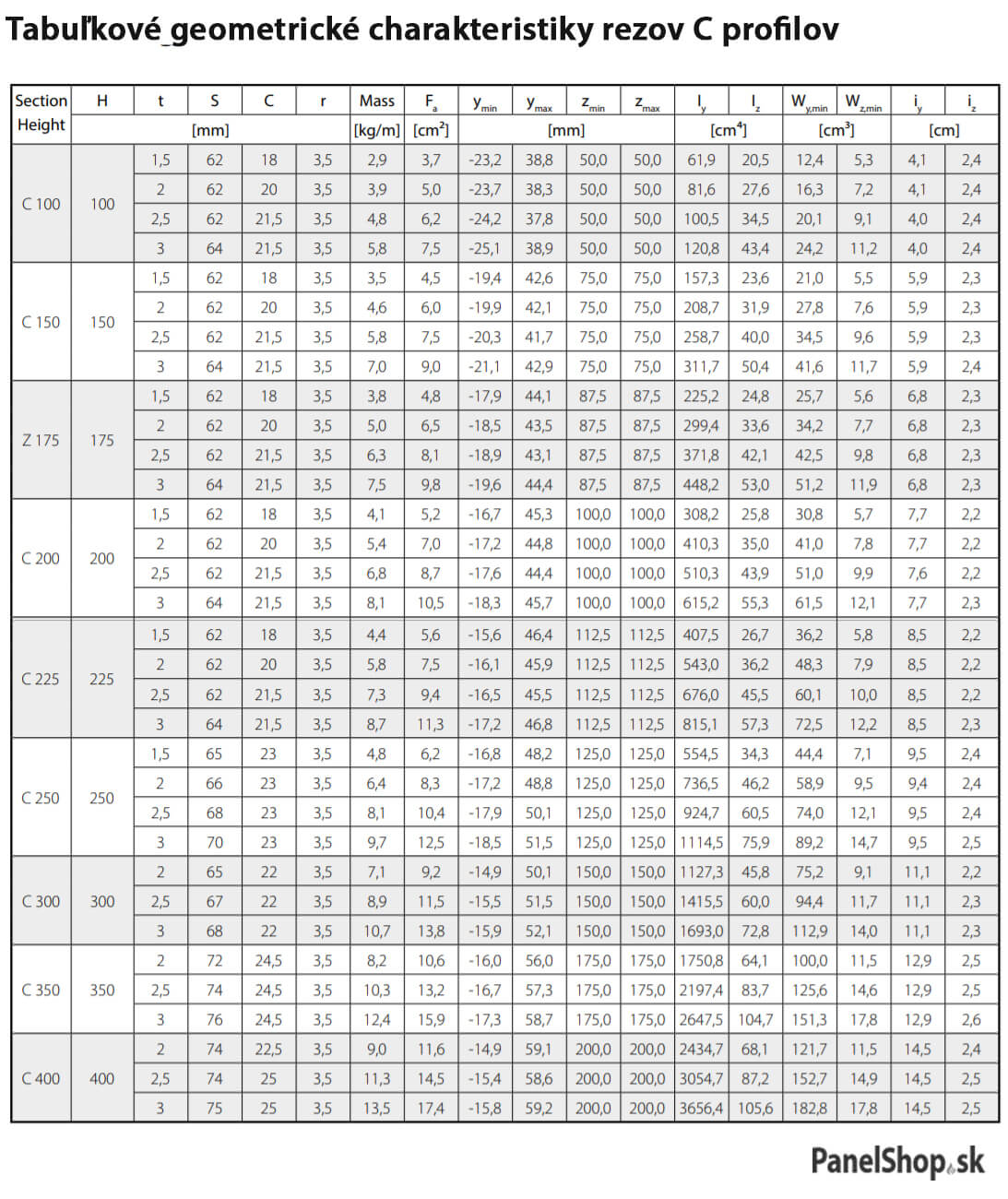

| Product Code | H (mm) height | Sheet thickness | Strip width (S1) | Length of edge reinforcement (C) | Weight (kg/m) | Price (excluding VAT) |
|---|---|---|---|---|---|---|
| PKP02_001 | 100mm | 1.5,-2,-2.5,-3mm | 62.-64mm | 18-21.5mm | 2.88-5.77kg/m | 2.2€ ex.VAT / kg (indicative) |
| PKP02_002 | 150mm | 1.5,-2,-2.5,-3mm | 62.-64mm | 18-21.5mm | 3.47-6.95kg/m | 2.2€ ex.VAT / kg (indicative) |
| PKP02_003 | 175mm | 1.5,-2,-2.5,-3mm | 62.-64mm | 18-21.5mm | 3.77-7.54kg/m | 2.2€ ex.VAT / kg (indicative) |
| PKP02_004 | 200mm | 1.5,-2,-2.5,-3mm | 62.-64mm | 18-21.5mm | 4.06-8.12kg/m | 2.2€ ex.VAT / kg (indicative) |
| PKP02_005 | 225mm | 1.5,-2,-2.5,-3mm | 62.-64mm | 18-21.5mm | 4.36-8.71kg/m | 2.2€ ex.VAT / kg (indicative) |
| PKP02_006 | 250mm | 1.5,-2,-2.5,-3mm | 65,-66,-68,-70mm | 23mm | 4.83-9.66kg/m | 2.2€ ex.VAT / kg (indicative) |
| PKP02_007 | 300mm | 2,-2,5,-3mm | 65,-67,-68mm | 22mm | 7.14-10.72kg/m | 2.2€ ex.VAT / kg (indicative) |
| PKP02_008 | 350mm | 2,-2,5,-3mm | 72,-74,-76mm | 24.5mm | 8.24-12.36kg/m | 2.2€ ex.VAT / kg (indicative) |
| PKP02_009 | 400mm | 2,-2,5,-3mm | 74,-74,-75mm | 22.5-25mm | 9.03-13.54kg/m | 2.2€ ex.VAT / kg (indicative) |

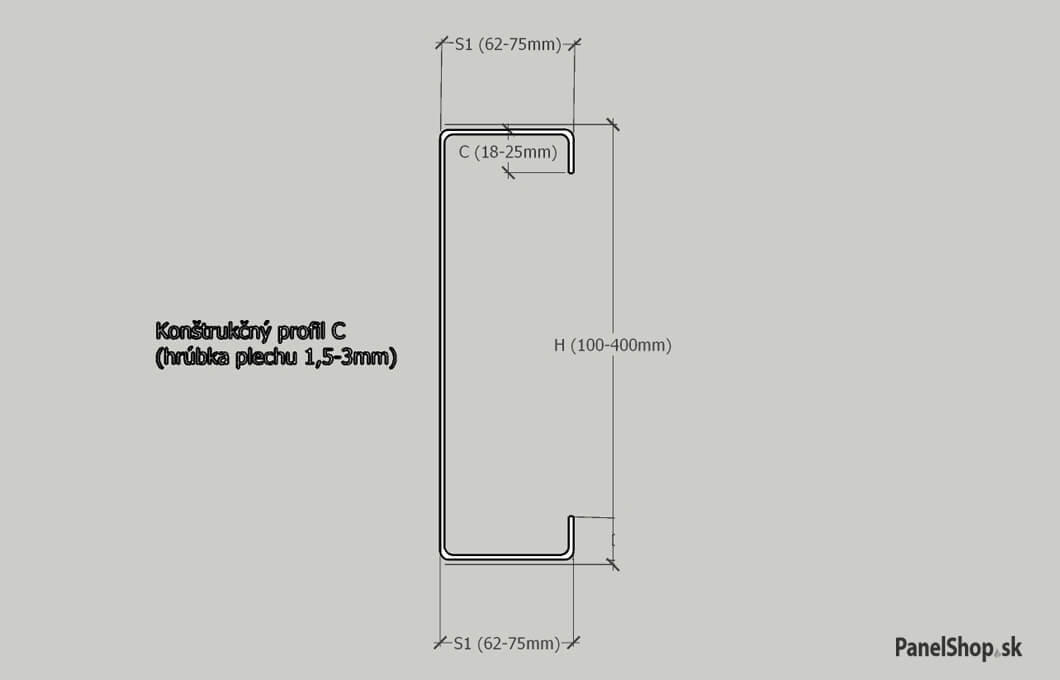

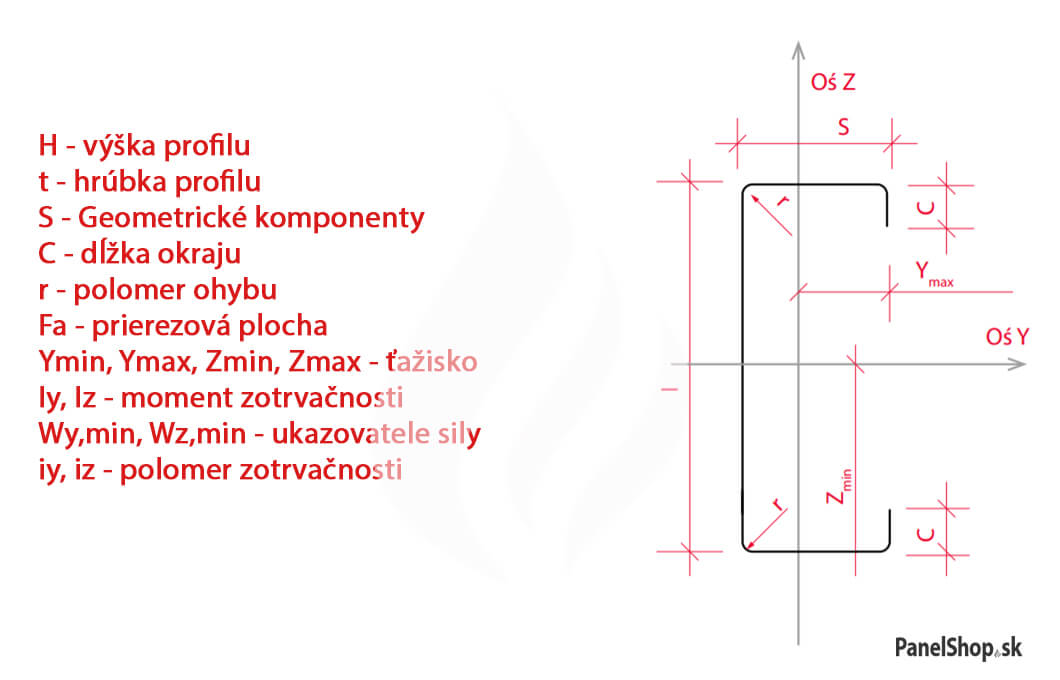

Section of structural C profile
Shipment and Payment
Delivery time is from 3-4 weeks to your desired address. (The delivery time is specified after entering the final order.) Payment is made by advance payments to the company account. The shipping price will be specified in the price offer. Shipping is free when ordered and delivered together with sandwich panels.
