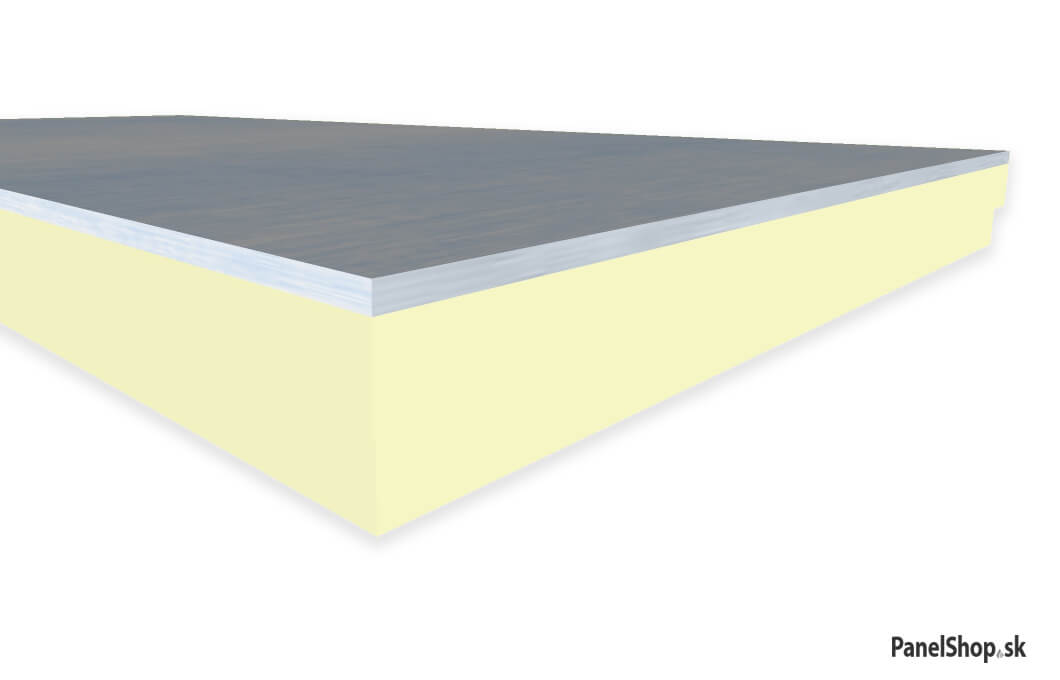

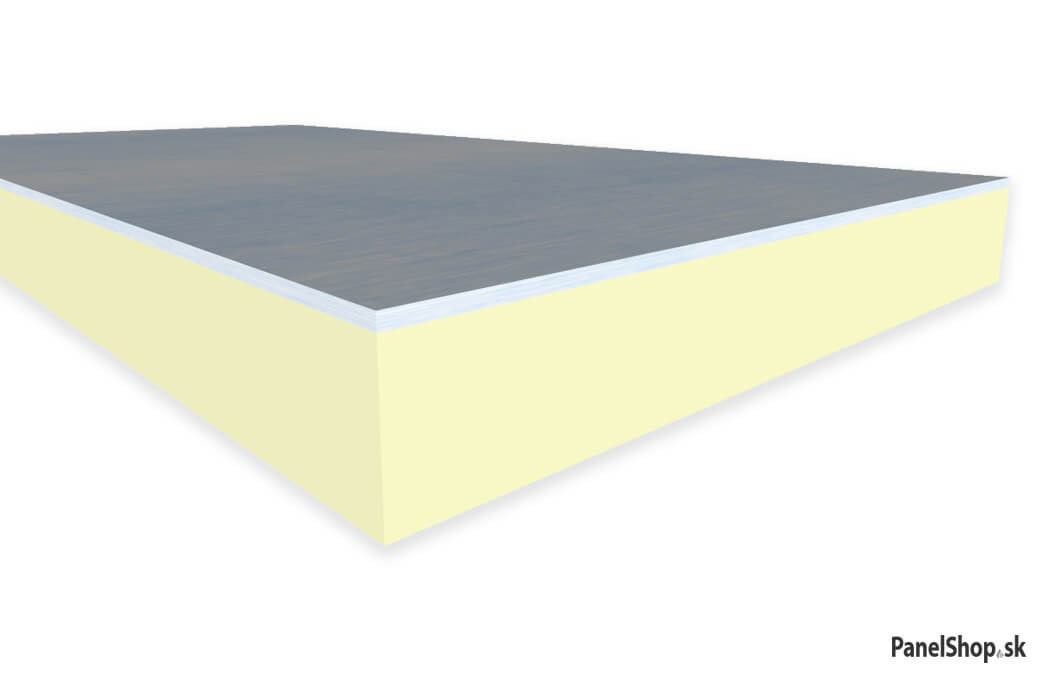

PIR panel with aluminum and plasterboard (AL PB)
PIR panel lined with aluminum cardboard foil and plasterboard (AL PB). The core of the panel is made of hardened PIR polyisocyanurate foam.
They are used to insulate roofs, perimeter walls, ceilings and floors of houses, industrial buildings, agricultural buildings, block of flats, storage areas, shops, manufacturing plants, sports halls, freezer and cold storage areas.

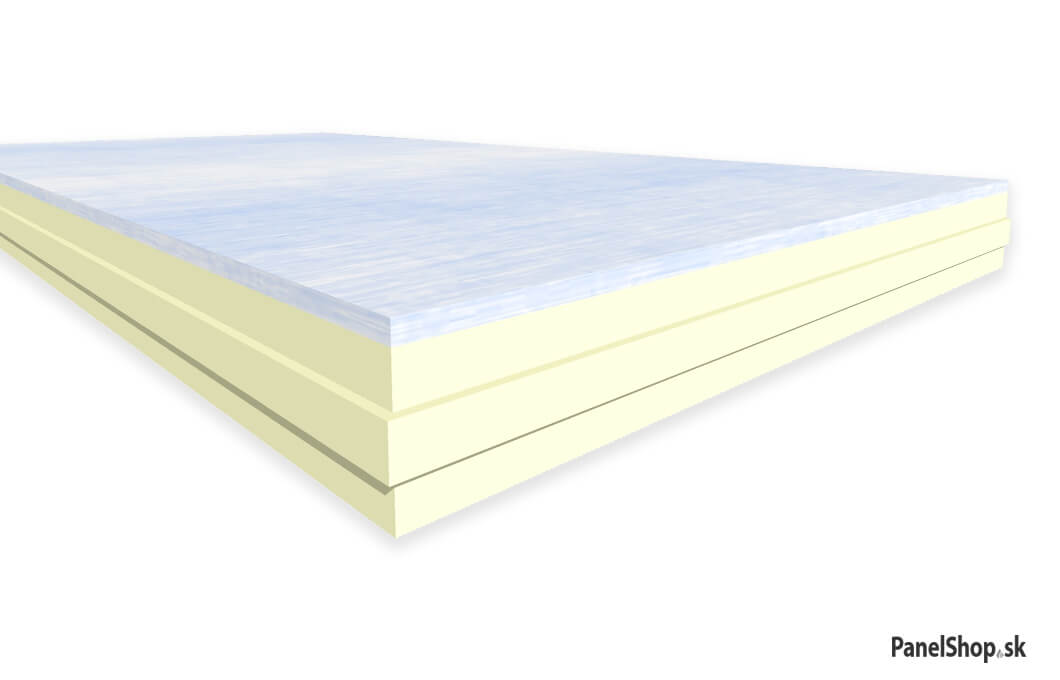

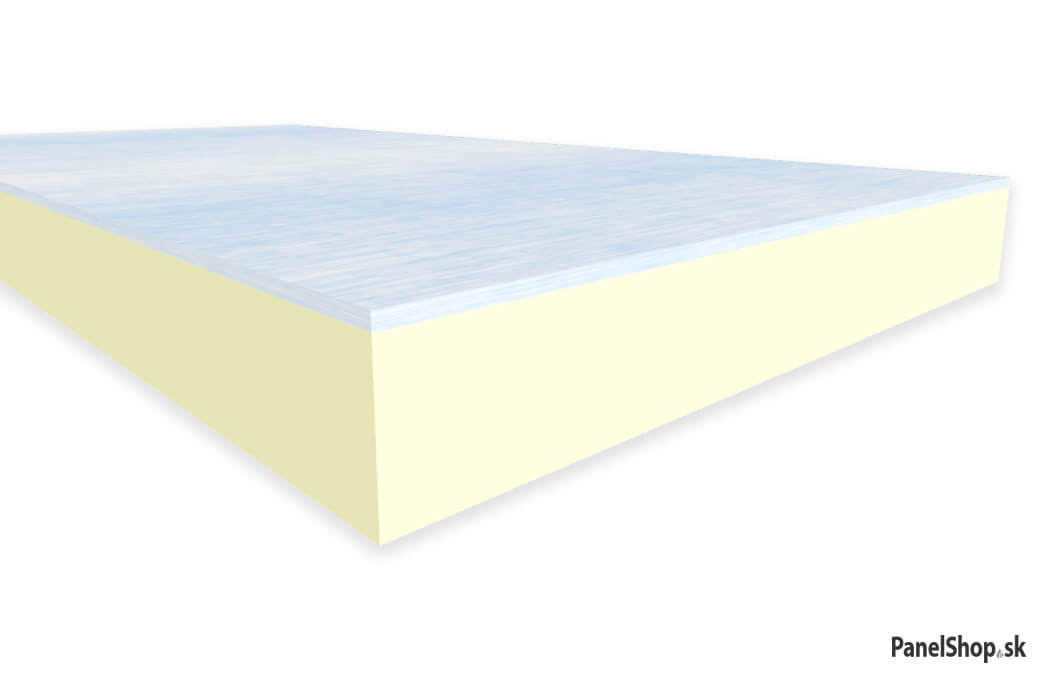

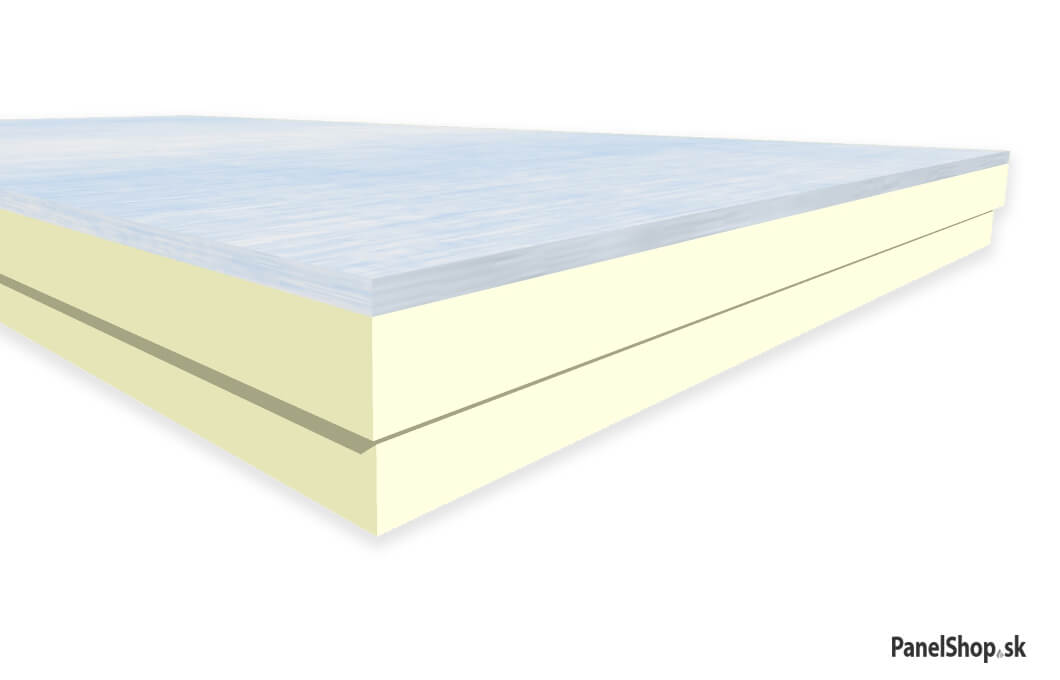

Thicknesses are from 20-250mm. The standard dimensions of the boards are 1200 x 2600 mm. 3 types of connections to choose from.
Guide price: 17,97€ without VAT / m2 (80mm)
Delivery time – 2 weeks
Product code: IP7…
We offer these variants of insulation panels
PIR panel lined with aluminum cardboard foil and plasterboard (AL PB). The core of the panel is made of hardened PIR polyisocyanurate foam. Thicknesses are from 20-250mm. The standard dimensions of the boards are 1200 x 2600 mm. 3 types of connections to choose from. Coefficient of thermal conductivity λ = 0.022 (W / mK). They are waterproof – absorption below 2%. Thermal insulation class A +, A ++. High pressure resistance of 150 kPa (15 tons / m2). Class E fire resistance. Weight 30 kg / m 3. Resistance to organic compounds, insects and rodents. Safe for the environment, both in production and in use.
Swipe left on mobiles ›
| Product Code | Width (mm) | Link | Standard board dimensions [mm] | Thermal insulation capacity(U [W/m2K]) | Fire Response | Number of panels in package(pcs) | Price(excluding VAT) |
|---|---|---|---|---|---|---|---|
| IP7001 | 20mm | straight edge | 1200 x 2600(mm) | 1.10 | Class E | 24pcs | 12,26€ ex. VAT/ m2 (indicative) |
| IP7002 | 40mm | straight edge, tongue groove, half groove* | 1200 x 2600(mm) | 0.55 | Class E | 12pcs | 13,26€ ex. VAT/ m2 (indicative) |
| IP7003 | 50mm | straight edge, tongue groove, half groove* | 1200 x 2600(mm) | 0.44 | Class E | 10 pcs | 14,26€ ex. VAT/ m2 (indicative) |
| IP7004 | 60mm | straight edge, tongue groove, half groove* | 1200 x 2600(mm) | 0.37 | Class E | 10 pcs | 16,26€ ex. VAT/ m2 (indicative) |
| IP7005 | 80mm | straight edge, tongue groove, half groove* | 1200 x 2600(mm) | 0.28 | Class E | 6pcs | 17,97€ ex. VAT/ m2 (indicative) |
| IP7006 | 100mm | straight edge, tongue groove, half groove* | 1200 x 2600(mm) | 0.22 | Class E | 5pcs | 19,97€ ex. VAT/ m2 (indicative) |
| IP7007 | 120mm | straight edge, tongue groove, half groove* | 1200 x 2600(mm) | 0.18 | Class E | 5pcs | 21,97€ ex. VAT/ m2 (indicative) |
| IP7008 | 150mm | straight edge, tongue groove, half groove* | 1200 x 2600(mm) | 0.15 | Class E | 4pcs | 23,97€ ex. VAT/ m2 (indicative) |
| IP7009 | 180mm | straight edge, tongue groove, half groove* | 1200 x 2600(mm) | 0.12 | Class E | 3pcs | 25,90€ ex. VAT/ m2 (indicative) |
| IP7010 | 200mm | straight edge, tongue groove, half groove* | 1200 x 2600(mm) | 0.11 | Class E | 3pcs | 27,9€ ex. VAT/ m2 (indicative) |
| IP7011 | 220mm | straight edge, tongue groove, half groove* | 1200 x 2600(mm) | 0.10 | Class E | 2pcs | 28,9€ ex. VAT/ m2 (indicative) |
| IP7012 | 250mm | straight edge, tongue groove, half groove* | 1200 x 2600(mm) | 0.09 | Class E | 2pcs | 31,9€ ex. VAT/ m2 (indicative) |
| half groove*from 30 mm and orders over 2000 m2 |
What else you will need

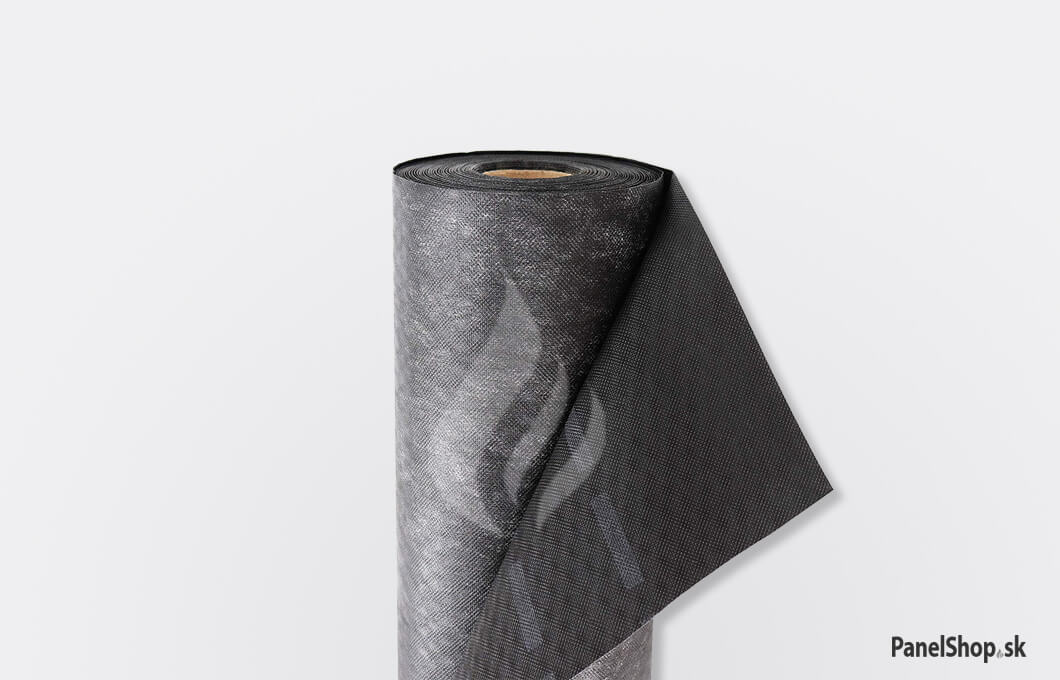

Roofing film
Waterproof and vapor-permeable polypropylene roofing film (suitable for installation on rafters)
42€ / 80m2 (120g/m²) without VAT
Aluminum sealing tape
Aluminum sealing tape for PIR panel joints (50 μm / 100 mm).
4€ / 100mm (50m) / 1pc without VAT

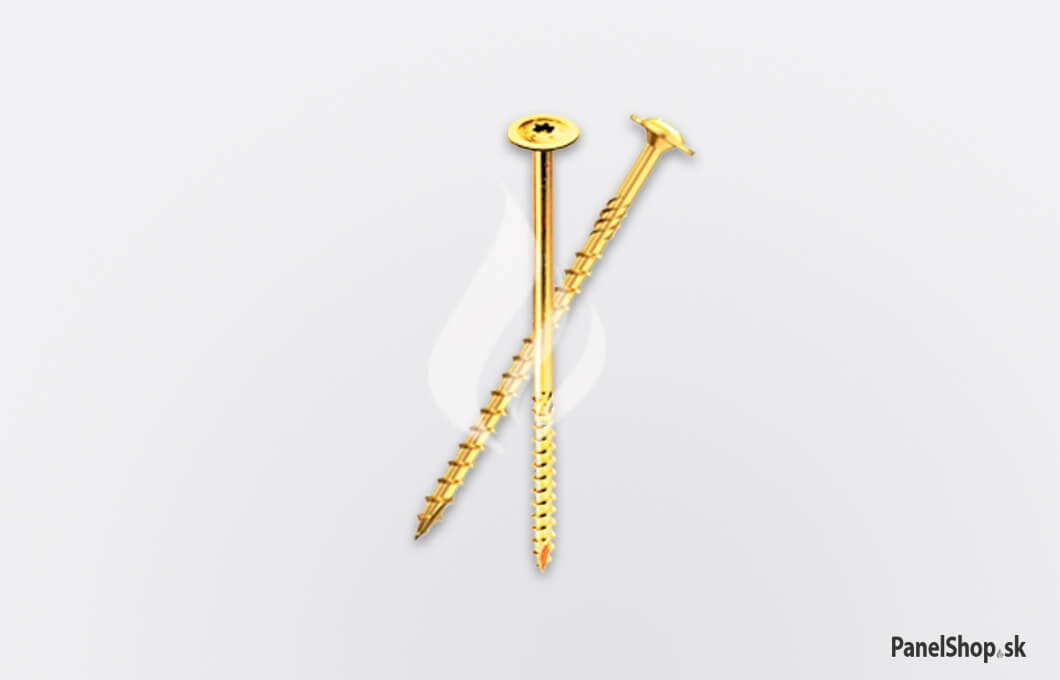

Torx fixing screws (for insulation panels)
Torx fixing screws for wood (lengths from 30-400mm, galvanized, head diameter Φ 6, Φ 8, 3 to 4 pieces of screws for every 1 m2, required length = panel thickness + counter battens + 40 mm to the rafter)
12,16€ / 50 ks / 160mm (without VAT)
Roofing dowel and screw
Roof dowel and screw for flat roofs made of trapezoidal sheet metal (dowel lengths are 35, 55, 85, 105, 135, 155, 185, 235, 285mm – plate diameter 50mm. Screw lengths 40, 50, 60, 70, 80, 90, 100, 120, 140, 160 mm – for attaching elements to a trapezoidal sheet of thickness 0.5 – 0.75 mm and 0.5 – 2 x 1.25 mm).
40€ / 100ks (without VAT)
Shipment and Payment
Delivery time is from 3-4 weeks to your desired address. (The delivery time is specified after entering the final order.) Payment is made by advance payments to the company account.
Bank: Slovenská Sporiteľňa, Account number (IBAN): SK53 0900 0000 0003 2426 4520, BIC SWIFT code: GIBASKBX. Customer service: Mon – Fri: 9:00 to 16:00, +421 910 107 878, info@paneleshop.eu
Important information (manuals, catalogs, quality information)
Important information (manuals, catalogs, quality information)
It’s basically a 21st century hit. The coefficient of thermal conductivity (λ = 0.023 W/mK) has the best of all available insulation materials on the market. So much better than mineral wool and polystyrene.
Other products
PIR panel with double-sided coating of bitumen fabric (glass fabric impregnated with asphalt). The core of the panel is made of hardened PIR polyisocyanurate foam.
Informative price: €15.97 without VAT / m2 (80mm)
PIR panel with double-sided covering of kraft paper (cardboard). The core of the panel is made of hardened PIR polyisocyanurate foam.
Informative price: 13,97€ without VAT / m2 (80mm)
What parameters are important when choosing (PIR panel)
When choosing insulation panels, you need to know the required thickness (from 20-250mm), the amount in m² of what you are going to insulate (roof, wall, floor, terrace) and the type of surface treatment (of 9 types). These 9 types are further divided into two types, vapor-permeable and vapor-tight. For example, a PIR panel with aluminum to insulate the roof is vapor-tight, and a PIR panel with glass fabric to insulate the outer perimeter wall is vapor-permeable (glue and mesh are applied).
