We are an e-shop for all kinds of sandwich panels, insulation panels and accessories. We offer panels with polyurethane, polyisocyanurate, mineral wool, polystyrene core, insulating panels, self-tapping screws, calots and all types of sheeting.
Offer of sandwich panels
With polyurethane (PUR / PIR)
The sandwich panel consists of two colored, galvanized, profiled steel sheets and polyurethane (PUR) or isocyanurate (PIR) filling. The thickness of the sheets can be from 0.4 mm to 0.7 mm. The panels are anchored with a visible or hidden joint.
These panels are widely used in the construction of buildings, storage areas, industrial and manufacturing warehouses, commercial areas, car showrooms, car repair shops, garages, agricultural warehouses and halls.
- we offer wall, facade (hidden joint), roof panels
- 24,70 € / 100mm (the price is indicative)
- delivery time – within 5 weeks
- free delivery over 200m2
- payment is made by advances to the company account 50% in advance and 50% after the panels are in stock
Wall panel (visible joint) Product code: SP001
Facade panel (hidden joint) Product code: SP002
Roof panel (visible joint) Product code: SP003
(Table of main parameters)
| Species, types, connections | PUR / PIR panel, wall, facade, roof, visible joint, hidden joint |
| Thicknesses | from 40mm – 160mm |
| Profiles (external) | smooth, linear, groove, microlinear, microwave, ClearLine, T-trapezoid |
| Profiles (internal) | linear, smooth, groove |
| Thermal insulation capabilities (U [W/m2K]) | from 0.14 – 0.59 (U [W/m2K]) |
| Weight (kg/m2) | from 9.9 – 15kg/m2 |
| Panel widths (effective) | 1000mm, 1100mm, 1130mm, 1140mm, 1050mm |
| Minimum-maximum panel length (recommended up to 12m, due to transport) | from 2m – 18m |
| Fire resistance (minutes) | EI15, NRO, EI20, NRO, EI30, NRO, , REI30, Broof(t1) |
| Fire Response | B-s1, d0, B-s2, d0, B-s1, d0 |
| Acoustics (weighted sound insulation) | Rw=from 25-26dB |
| Max. number of pieces in package (pcs) | from 7 – 18 pcs |
| Sheet thicknesses (standard) | 0.5/0.5mm |
| Colors (RAL)* |  |
| * color availability must be approved by the sales department before placing an order | |
| * option to choose a color according to your individual requirement in RAL color* standard colored surface is made of polyester. the option of choosing a premium finish made of polyurethane with polyamide, metallic surfaces made of zinc or aluzinc, stainless steel or titanium-zinc |
With mineral wool
Sandwich panel It consists of two colored, galvanized, profiled steel sheets and mineral wool filling. Sheet thickness Can be from 0.5mm to 0.6mm. The panels are anchored with a visible or hidden joint. Very high fire resistance and sound insulation.
These Siroco panels are used in the construction of buildings, storage areas, industrial and production warehouses, commercial areas, car showrooms, car repair shops, garages, agricultural warehouses and halls.
The panels are designed to cover interior, exterior walls, ceilings and roof skeleton structures.
- we offer wall, facade (hidden joint) and roof panels
- 25,68 € / 100mm (the price is indicative)
- delivery time – within 5 weeks
- free delivery over 200m2
- payment is made by advances to the company account 50% in advance and 50% after the panels are in stock.
Wall panel (visible joint) Product code: SP004
Facade panel (hidden joint) Product code: SP005
Roof Panel ( visible joint) Product code: SP006
(Table of main parameters)
| Species, types, connections | Mineral wool panels. Wall, facade, roof. Visible joint, hidden joint |
| Thicknesses | from 60mm – 200mm |
| Profiles (external) | smooth, linear, groove, microwave, T-trapezoid (linear) |
| Profiles (internal) | linear, smooth |
| Thermal insulation capabilities (U [W/m2K]) | from 0.2 – 0.66 (U [W/m2K]) |
| Weights (kg/m2) | from 16.5 – 37.5 kg/m2 |
| Panel widths (effective) | 1100mm, 1190mm, 1050mm, 1000mm |
| Minimum-maximum length of panels (recommended up to 12m, due to transport) | from 2m – 15m |
| Fire resistance (minutes) | EI30, NRO, EI60, NRO, EI90/120, NRO, EI120/240, NRO, REI90, Broof(t1,t3) |
| Fire Response | A2-s1, d0, A2-s2, d0 |
| Acoustics (weighted sound insulation) | Rw=from 31 -32dB |
| Max. number of pieces in package (pcs) | |
| Sheet thicknesses (standard) | 0.5/0.5mm (option 0.5-0.7mm) |
| Colors (RAL)* |  |
| * color availability must be approved by the sales department before placing an order | |
| * option to choose a color according to your individual requirement in RAL color* standard colored surface is made of polyester. the option of choosing a premium finish made of polyurethane with polyamide, metallic surfaces made of zinc or aluzinc, stainless steel or titanium-zinc |
With polystyrene core
The sandwich panel consists of two colored, galvanized, profiled steel sheets and a polystyrene core. The thickness of the sheets can be from 0.5 mm (0.6 mm on order). The panels are anchored with a visible joint. The main advantage is the low weight and thickness options from 50mm to 250mm.
These panels are widely used in the construction of buildings, storage areas, industrial and manufacturing warehouses, commercial areas, car showrooms, car repair shops, garages, agricultural warehouses and halls.
The panels are designed to cover interior, exterior walls, ceiling and roof skeleton structures.
- we offer wall and roof panels
- 21,00€ / 100mm (the price is indicative)
- delivery time – within 5 weeks
- free delivery over 200m2
- payment is made by advances to the company account 50% in advance and 50% after the panels are in stock
Wall panel (visible joint) Product code: SP007
Roof panel (visible joint) Product code: SP008
(Table of main parameters)
| Species, types, connections | Polystyrene core panels. Wall, roof. visible joint |
| Thicknesses | from 50mm – 200mm |
| Profiles (external) | smooth, linear, groove, microwave, T-trapezoid (linear – 3 types) |
| |
|
| Profiles (internal) | linear (2 types), smooth |
| Thermal insulation capabilities (U [W/m2K]) | from 0.19 – 0.73 (U [W/m2K]) |
| Weights (kg/m2) | From 9.5 – 11.7 kg/m2 |
| Panel widths (effective) | 1155mm, 1190mm, 1100mm |
| Minimum-maximum length of panels (recommended up to 12m, due to transport) | from 2m – 17m |
| Fire resistance (minutes) | EW15/60, NRO, RE30 |
| Fire Response | D-s2/s3, d0, B-roof(t1) |
| Acoustics (weighted sound insulation) | Rw = 23dB |
| Max. number of pieces in package (pcs) | – |
| Sheet thicknesses (standard) | 0.5/0.5mm (option 0.5-0.6mm) |
| Colors (RAL)* | |
| * color availability must be approved by the sales department before placing an order | |
| * option to choose a color according to your individual requirement in RAL color* standard colored surface is made of polyester. the option of choosing a premium finish made of polyurethane with polyamide, metallic surfaces made of zinc or aluzinc, stainless steel or titanium-zinc |
For farms and agricultural buildings
The sandwich panel consists of two colored, galvanized, profiled steel sheets and polyurethane (PUR), isocyanurate (PIR) filling or mineral wool. The thickness of the sheets can be from 0.5 mm to 0.7 mm. The panels are anchored with a visible, higher-quality joint.
Suitable for farms, agricultural buildings, food stores, cold and freezer rooms, fruit and vegetable warehouses, areas with high demands on hygiene and fire protection.
The panels are designed to cover interior, exterior walls, ceiling and roof skeleton structures.
- we offer wall and roof panels
- 26,72€ / 100mm (the price is indicative)
- delivery time – within 5 weeks
- free delivery over 200m2
- payment is made by advances to the company account 50% in advance and 50% after the panels are in stock
PUR / PIR wall panel (visible joint, farm) Product code: SP009
Wall panel mineral wool (visible joint, farm) Product code: SP010
PUR / PIR roof panel (visible joint, farm) Product code: SP011
Mineral wool roof panel (visible joint , farm) Product code: SP012
(Table of main parameters)
| Species, types, connections | Polystyrene core panels. Wall, roof. visible joint |
| Thicknesses | from 40mm – 200mm |
| Profiles (external) | smooth, linear, microgroove, microlinear, microwave, ClearLine, T – trapezoid |
| |
|
| Profiles (internal) | linear, smooth, groove |
| Thermal insulation capabilities (U [W/m2K]) | from 0.11 – 0.5 (U [W/m2K]) |
| Weights (kg/m2) | From 10.2 – 41 kg/m2 |
| Panel widths (effective) | 1000mm, 1050mm, 1100mm, 1130mm, 1190mm |
| Minimum-maximum length of panels (recommended up to 12m, due to transport) | from 2m – 16.5m |
| Fire resistance (minutes) | EI30, NRO, EI60, NRO, EI120, NRO, EIW240, NRO, REI30, Broof(t1), REI90, Broof(t1,t3) |
| Fire Response | B-s2, d0, A2-s1, d0, B-s1, d0 |
| Acoustics (weighted sound insulation) | Rw = 25-31dB |
| Max. number of pieces in package (pcs) | – |
| Sheet thicknesses (standard) | 0.5/0.5mm (option 0.5-0.7mm) |
| Colors (RAL)* | |
| * color availability must be approved by the sales department before placing an order | |
| * option to choose a color according to your individual requirement in RAL color* standard colored surface is made of polyester. the option of choosing a premium finish made of polyurethane with polyamide, metallic surfaces made of zinc or aluzinc, stainless steel or titanium-zinc |
For cold storage and freezer areas
The sandwich panel consists of two colored, galvanized, profiled steel sheets and polyurethane (PUR) or isocyanurate (PIR) filling. The thickness of the sheets can be from 0.5 mm to 0.7 mm. The panels are anchored with a visible, higher-quality joint.
Suitable for food buildings, cold and freezer rooms, fruit and vegetable warehouses, areas with high hygiene requirements.
The panels are designed to cover interior, exterior walls and ceiling lintels.
- we offer wall panels
- 32,06€ / 160mm (price is indicative)
- delivery time – within 5 weeks
- free delivery over 200m2
- payment is made by advances to the company account 50% in advance and 50% after the panels are in stock
PUR / PIR wall panel (visible joint, freezer) Product code: SP013
PUR / PIR wall panel (visible joint, freezer) Product code: SP013
(Table of main parameters)
| Species, types, connections | Polystyrene core panels. Wall, roof. visible joint |
| Thicknesses | from 120mm – 200mm |
| Profiles (external) | smooth, linear, microgroove, microlinear, microwave, ClearLine |
| |
|
| Profiles (internal) | linear, smooth, groove |
| Thermal insulation capabilities (U [W/m2K]) | from 0.11 – 0.18 (U [W/m2K]) |
| Weights (kg/m2) | From 13.1 – 16.3 kg/m2 |
| Panel widths (effective) | 1000mm, 1050mm, 1100mm, 1130mm |
| Minimum-maximum length of panels (recommended up to 12m, due to transport) | from 2m – 16.5m |
| Fire resistance (minutes) | EI30, NRO, EI60, NRO |
| Fire Response | B-s2, d0 |
| Acoustics (weighted sound insulation) | Rw = 25dB |
| Max. number of pieces in package (pcs) | From 5 – 9 pcs |
| Sheet thicknesses (standard) | 0.5/0.5mm (option 0.5-0.7mm) |
| Colors (RAL)* | |
| * color availability must be approved by the sales department before placing an order | |
| * option to choose a color according to your individual requirement in RAL color* standard colored surface is made of polyester. the option of choosing a premium finish made of polyurethane with polyamide, metallic surfaces made of zinc or aluzinc, stainless steel or titanium-zinc |
What parameters are important when ordering
When ordering, it is important to know, for example: thickness, type-type-joint, plating profile (external, internal), area in m2, number of pieces (pcs) and lengths (e.g. 8pcs-10m long) and, of course, color in RAL shade.
Main beneficial construction parameters:
- high quality insulation properties (eg: PIR panel, 120mm has TIS U = 0.19 (W / m2.K) compared to YTONG 300mm brick plus facade polystyrene 8cm TIS U = 0.22 (W / m2. K))
- very high-quality fire properties (e.g.: fire resistance 180 mm mineral wool panel EI120 / 240, NRO)
- very high-quality acoustic insulation (e.g. 100 mm mineral panel has weighted sound insulation Rw = 31dB)
- quick assembly and minimal maintenance (faster and simpler construction than with brick buildings)
- no external and internal decoration is needed
- modern aesthetic appearance, different variants of profiles and colors
- panels can be assembled vertically and horizontally
- complete environmental safety
- long service life – service life over 50 years
- vapor tightness and air tightness
Offer of Insulation panels (PIR panels)
PIR insulation panels are thermal insulation boards with a core of modified polyurethane (polyisocyanurate – PIR), which are protected on both sides by surface treatment with different types of adhesive and three types of joints. Thicknesses are from 20-250mm. The standard dimensions of the boards are 600 x 1200 mm; 1200 x 2400mm. Dimensions with plasterboard 1200 x 2600 (mm).
They are used to insulate roofs, perimeter walls, terraces, ceilings and floors of houses, industrial buildings, agricultural buildings, block of flats, storage areas, shops, manufacturing plants, sports halls, freezer and cold storage areas.
It’s basically a 21st century hit. The coefficient of thermal conductivity (λ = 0.023 W / mK) has the best of all available insulation materials on the market. So much better than mineral wool and polystyrene.
PIRpanel with aluminum and kraft paper (AL KP) Product code: IP1…
PIRpanel with kraft paper (KP) Product code: IP2…
PIRpanel with glass fabric (GF) Product code: IP3…

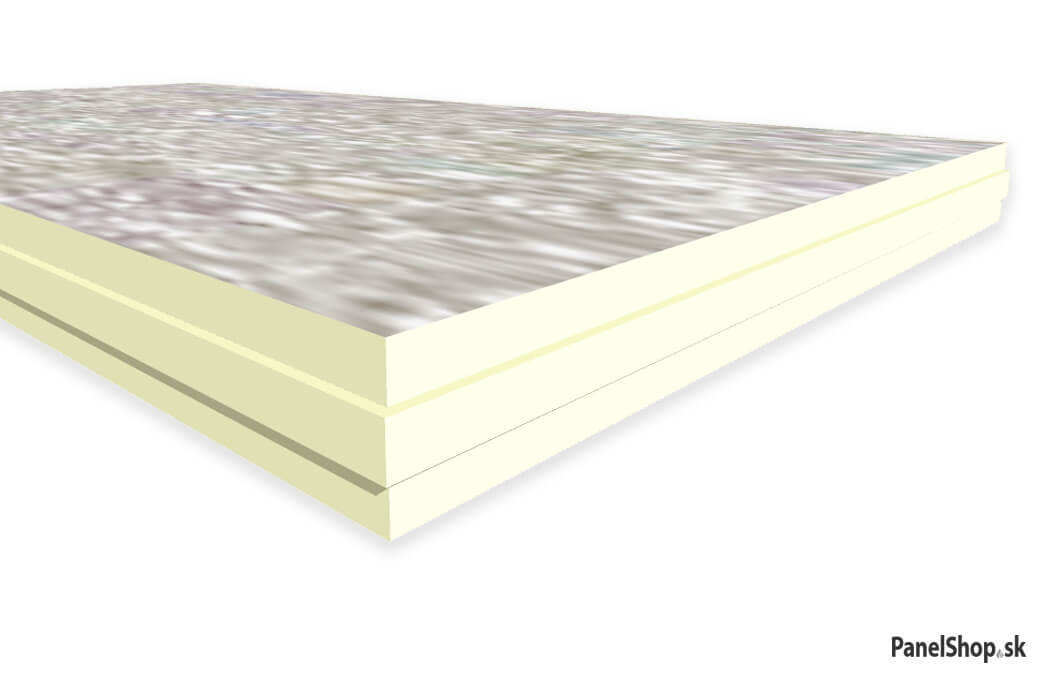

PIRpanel with bitumen fabric (BF) Product code: IP4…
PIRpanel with 50 micron aluminum (AL) (AGR) Product code: IP5…
PIR panel with mineral fleece (MW) (AGR) Product code: IP6…
PIRpanel with aluminum and plasterboard (AL PB) Product code: IP7…
PIRpanel with glass fabric and plasterboard (GF PB) Product code: IP8…
PIRpanel with glass fabric and bitumen (GF B) Product code: IP9…
(Table of main parameters)
| Surface treatment | aluminum with kraft paper (AL KP), kraft paper (KP), glass cloth (GF), bitumen cloth (BF), 50 micron aluminum (AL) (AGR), mineral fleece (MW) (AGR), aluminum and plasterboard (AL PB), glass cloth and plasterboard (GF PB), glass cloth and bitumen (GF B) |
| Widths | from 20mm – 250mm |
| Connection types | straight edge, tongue groove, half groove* |
| Standard board dimensions [mm] | 600 x 1200; 1200 x 2400(mm), 1200 x 2600(mm) |
| Thermal insulation capacity (U [W/m2K]) | from 0.08 – 1.12 [W/m2K]) |
| Fire Response | class E, class F, class, D-s2, d0 |
| Number of panels in the package (pcs) | from 2 – 24 pcs |
| Indicative prices (without VAT) | from 8,26€ – 32,9€ wo/VAT / m2 |
What parameters are important when choosing
When choosing insulation panels, you need to know the required thickness (from 20-250mm), the quantity in m², which you want to insulate (roof, wall, floor, terrace) and the type of surface treatment (from 9 types). These 9 types are further divided into two types, vapor-permeable and vapor-tight. For example, a PIR panel with aluminum to insulate the roof is vapor-tight, and a PIR panel with glass fabric to insulate the outer perimeter wall is vapor-permeable (glue and mesh are applied).
SANDWICH ACCESSORIES
AND INSULATION PANELS
You will definitely need accessories to complete the assembled sandwich construction or insulation with PIR panels. Among the most important are self-tapping screws with an EPDM pad for fixing roof and wall panels, calots for better fixing of roof panels (more stressed joints), EPDM sealing tape important for sealing joints during sheeting of coverings and the sheeting elements themselves (edges) for aesthetics, protection and correct rainwater drainage.
Accessories for sandwich panels
Self-tapping screws for sandwich panels (screws)
TEX self-tapping screws are used to fasten sandwich panels to a steel, wooden or concrete structure. Self-tapping screws are made of noble galvanized or stainless steel (more expensive version) with an EPDM washer. Roof and wall panels are fixed with them without pre-drilling, except for installation in a concrete structure, where classic dowels with pre-drilling are used.

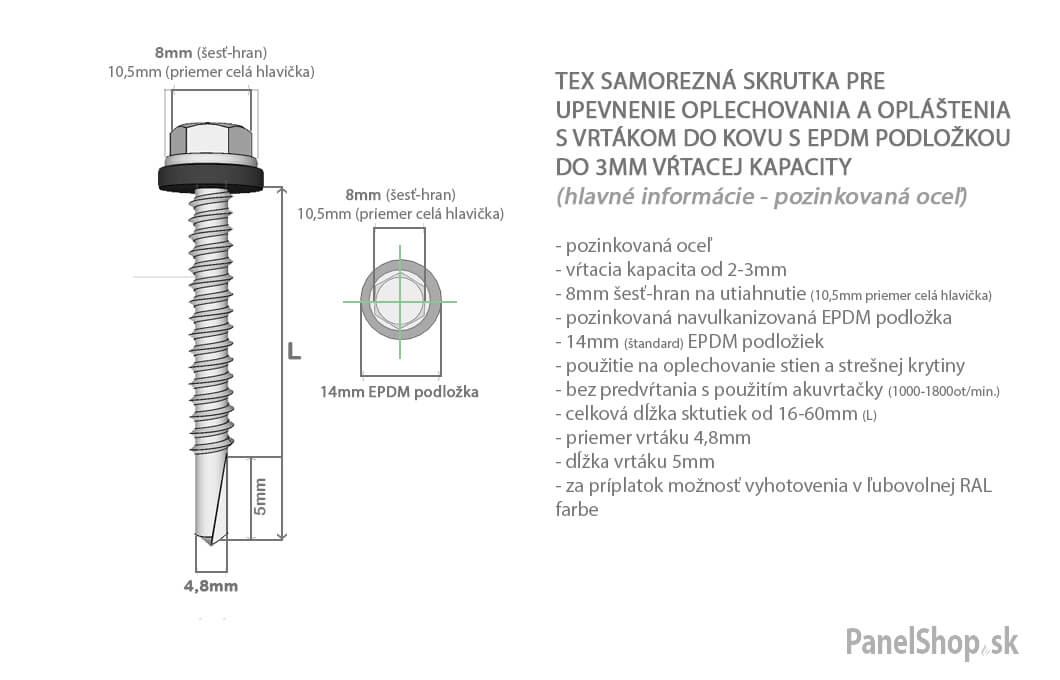

Self-tapping screws for sandwich panels in steel construction (galvanized steel) Product code: PS1
Self-tapping screws for sandwich panels in steel construction (stainless steel) Product code: PS2
(Table of main parameters)
| Types of steel | galvanized, stainless steel |
| Types of surfaces | for iron, for wood, for concrete |
| Bolt lengths | from 65 – 300mm |
| Header widths | 8mm hexagon (10.5mm diameter whole header) |
| Thread diameter | 5.5mm |
| Drilling capacities | from 4-12mm |
| EPDM pads | from 16 – 22mm |
| For panel thicknesses (mm) | from 35 – 270mm |
| Packaging | from 100 – 200 pcs |
| Prices (indicative) | from 28 – 280€ wo/VAT |
What parameters are important when choosing
When choosing, it is important to know the required length of the screw, or the thickness of the panel into which it will be drilled. In practice, the minimum length of self-tapping screws is determined as the sum of the thicknesses of all materials to be fastened + 20-30 mm. Screws are calculated at 3-5% of the price of the panels (when estimating the quantity)(Table of main parameters)
| Types of steel | galvanized, stainless steel |
| Types of surfaces | for iron, for wood, for concrete |
| Bolt lengths | from 65 – 300mm |
| Header widths | 8mm hexagon (10.5mm diameter whole header) |
| Thread diameter | 5.5mm |
| Drilling capacities | from 4-12mm |
| EPDM pads | from 16 – 22mm |
| For panel thicknesses (mm) | from 35 – 270mm |
| Packaging | from 100 – 200 pcs |
| Prices (indicative) | from 28 – 280€ wo/VAT |
What parameters are important when choosing
When choosing, it is important to know the required length of the screw, or the thickness of the panel into which it will be drilled. In practice, the minimum length of self-tapping screws is determined as the sum of the thicknesses of all materials to be fastened + 20-30 mm. Screws are calculated at 3-5% of the price of the panels (when estimating the quantity)
Self-tapping screws for plating and sheathing (stitching)
We offer TEX self-tapping screws for fixing sheet metal with a metal drill. The self-tapping screws are made of high-grade galvanized steel with a vulcanized and galvanized EPDM pad.
The diameter of the screw is 4.8 mm, the width of the head is 8 mm hexagon, the length of the drill bit is 5 mm. Screw lengths are from 16-60mm. We recommend it for fixing metal sheeting and roof coverings.
(Table of main parameters)
| Types of steel | galvanized, stainless steel |
| Types of surfaces | for iron, for wood, for concrete |
| Bolt lengths | from 16 – 60mm |
| Header widths | 8mm hexagon (10.5mm diameter whole header) |
| Thread diameter | 4.8mm |
| Drilling capacities | from 2 – 3mm |
| EPDM pads | from 14mm |
| Packaging | from 150 – 650 pcs |
| Prices (indicative) | from 18 – 38€ wo/VAT |
 |
|
Self-tapping screws for plating and sheathing (stitching)
We offer TEX self-tapping screws for fixing sheet metal with a metal drill. The self-tapping screws are made of high-grade galvanized steel with a vulcanized and galvanized EPDM pad.
The diameter of the screw is 4.8 mm, the width of the head is 8 mm hexagon, the length of the drill bit is 5 mm. Screw lengths are from 16-60mm. We recommend it for fixing metal sheeting and roof coverings.
(Table of main parameters)
| Types of steel | galvanized, stainless steel |
| Types of surfaces | for iron, for wood, for concrete |
| Bolt lengths | from 16 – 60mm |
| Header widths | 8mm hexagon (10.5mm diameter whole header) |
| Thread diameter | 4.8mm |
| Drilling capacities | from 2 – 3mm |
| EPDM pads | from 14mm |
| Packaging | from 150 – 650 pcs |
| Prices (indicative) | from 18 – 38€ wo/VAT |
| |
|
Calots for roof sandwich panels
They are used to fasten roof sandwich panels to steel or wooden supporting structures. They are made of painted aluminum. Standard color RAL 9002. They are used together with standard self-tapping screws with a recommended 16mm washer. We offer all RAL colors for an additional fee.
Calots for roof sandwich panels Product code: PK1
Calots for roof sandwich panels product code: PK1
(Table of main parameters)
| Calotte widths (mm) | from 20 – 55mm |
| Inclination angles (°) | from 16 – 40° |
| Top wave widths (mm) | from 19 – 54mm |
| Pack/pcs | 500 pcs |
| Prices (indicative) | 210€ / 500 pcs wo/VAT |
 |
|

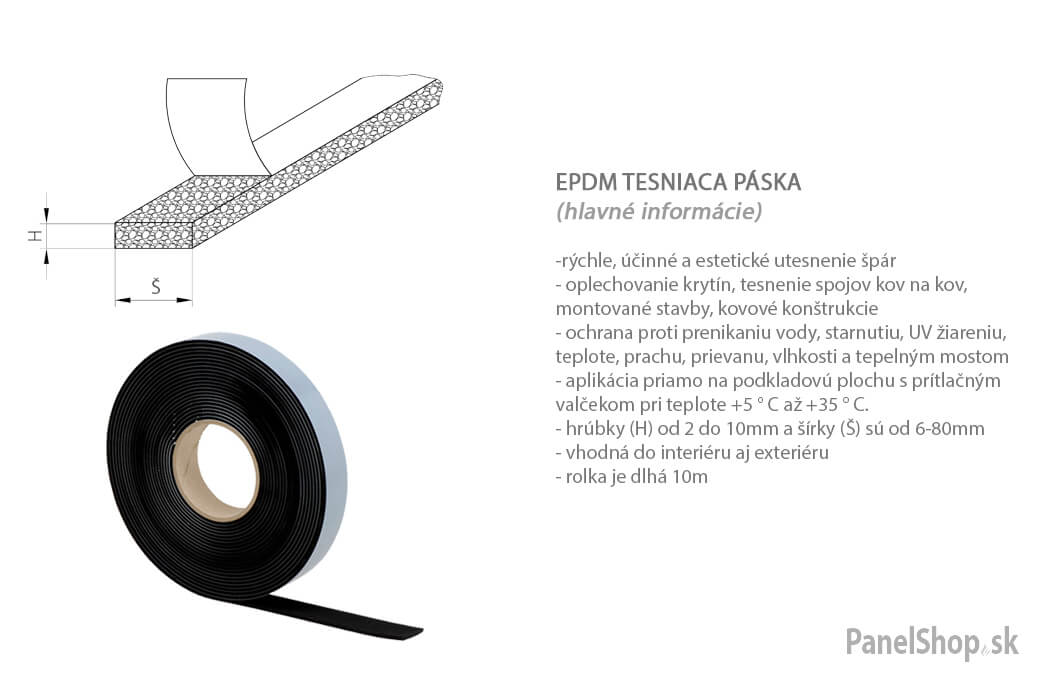

EPDM sealing tape
It is used for fast, effective and aesthetic sealing of joints in roofing sheeting and sealing of hard metal-to-metal joints in prefabricated constructions in metal structures.
Provides protection against water penetration, ageing, UV radiation, temperature, dust, drafts, humidity and thermal bridging. It is suitable for both interior and exterior use.
Tape thicknesses are from 2 to 10mm and widths are from 6-80mm. One roll is 10m long. It is applied directly to the substrate with a pressure roller at a temperature of +5 °C to +35 °C.
Prices from 1 – 4,5€ without VAT / roll
(pictures of EPDM sealing tape)
Shelling elements for sandwich prefabricated buildings
For aesthetics, protection and proper drainage of rainwater, sheeting elements (strips) are used, which are made of colored galvanized sheet with a thickness from 0.5 to 1.25 mm (standard 0.5 mm). The maximum length is 6m. Option to enter your own parameters.
The inner side is coated with polyester and the outer with 25 micrometer (um) polyester as a standard layer thickness. Colors are available in RAL shades as for sandwich panels.
(Offered types of plating)
Sheet plating – Outer corner (option 1) Product code: P01
Sheet plating – Outer corner (option 2)Product code: P02
Sheet plating – Inner corner (option 1) Product code: P03
Sheet plating – Inner corner (option 2) Product code: P04
Sheet plating – Outer corner (connector cover) Product code: P05
Sheet plating – Inner corner (connector cover) Product code: P06
Sheet plating – Inner corner (floor covering) Product code: P07
Sheet plating – Inner corner (floor covering, option 2) Product code: P08
Sheet plating – Inner corner (beam cover) Product code: P09
Plate Sheeting – Narrow Gutter Edge Product Code: PO10
Sheet plating – Plinth gutter Product code: PO11
Sheet plating – Covering panel joints Product code: PO12
Sheet plating – Side gutter edge Product code: PO13
Sheet plating – Roofing Product code: PO14
Sheet plating – Covering of door posts Product code: PO15
Plate sheeting – Upper ridge of the roof Product code: PO16
Sheet plating – Under gutter section gutter Product code: PO17
Plate sheeting – Bottom gutter Z profile Product code: PO18
Sheet plating – Snow protection (roof) Product code: PO19
Plating – Edging of roofing Product code: PO20
Plate sheeting – Top of the roof Product code: PO21
Plate sheeting – Attic roof Product code: PO22
Plate Sheeting – Channel Edge Product Code: PO23
Sheet plating – Window sill Product code: PO24
Sheet plating – Edge strip for S panels Product code: PO25
Sheet plating – Edge strip for U panels Product code: PO26
Sheet plating – Edge strip Product code: PO27
(Table of main parameters)
| Sheet thickness (h) | 0.5 – 1.25mm (standard 0.5mm) |
| Widths (w) | 50 – 260mm (depends on type), possibility of own parameter |
| Angle (α°) | 90° – 92° (depends on type), custom parameter option |
| Length (d) | 6000mm (standard), possibility of own parameter |
| Weight(kg) | 2.76 – 16.8kg (h=0.5mm) |
| Price (approximate) | 3 – 5€ |
| Delivery Time | 1 – 3 weeks |
 |
|
We are an e-shop for all kinds of sandwich panels, insulation panels and accessories. We offer panels with polyurethane, polysocyanurate, mineral wool, polystyrene core, insulating panels, self-tapping screws, calots and all types of sheeting.
.
