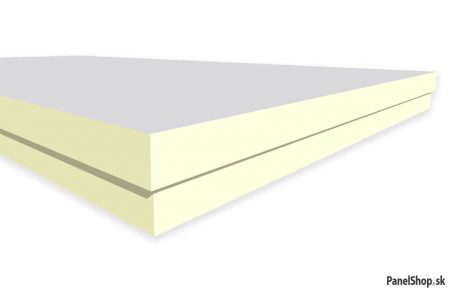

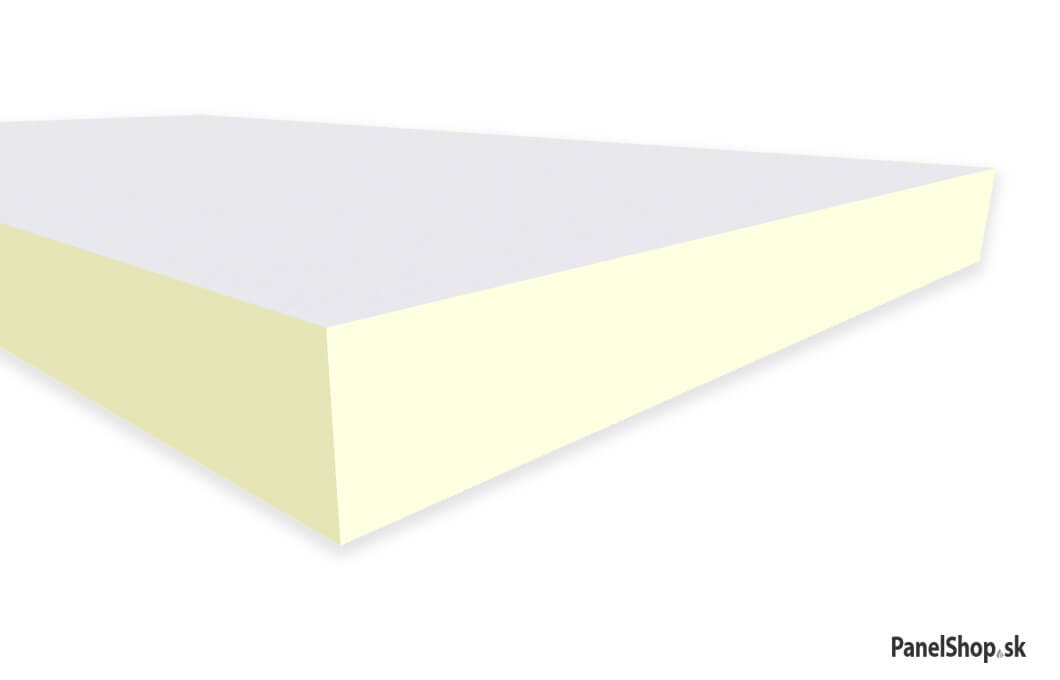

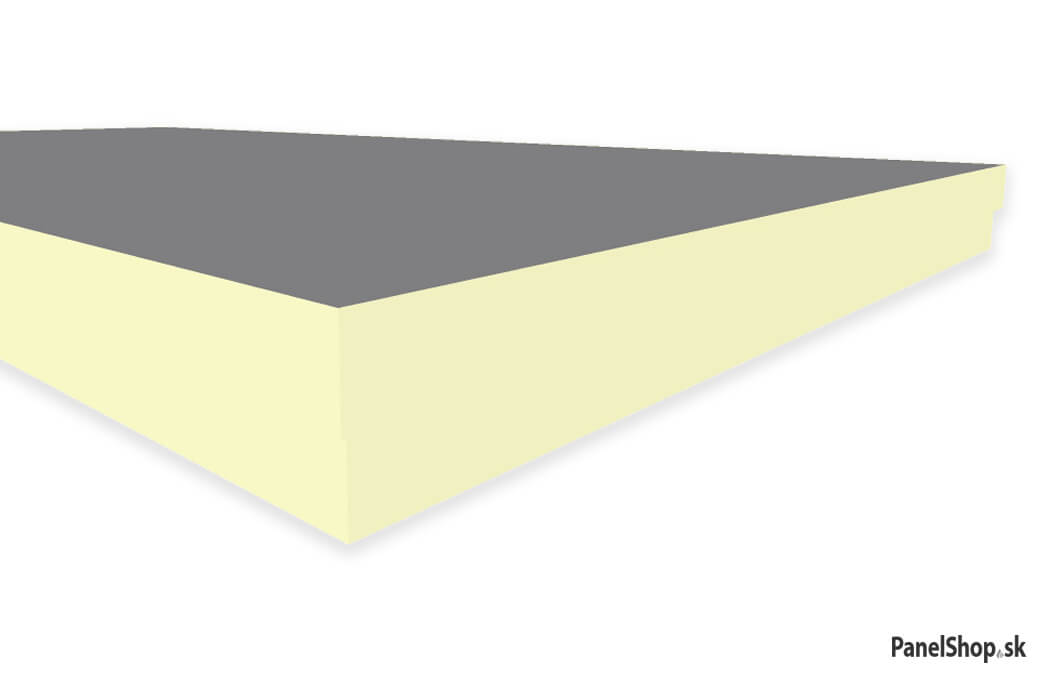

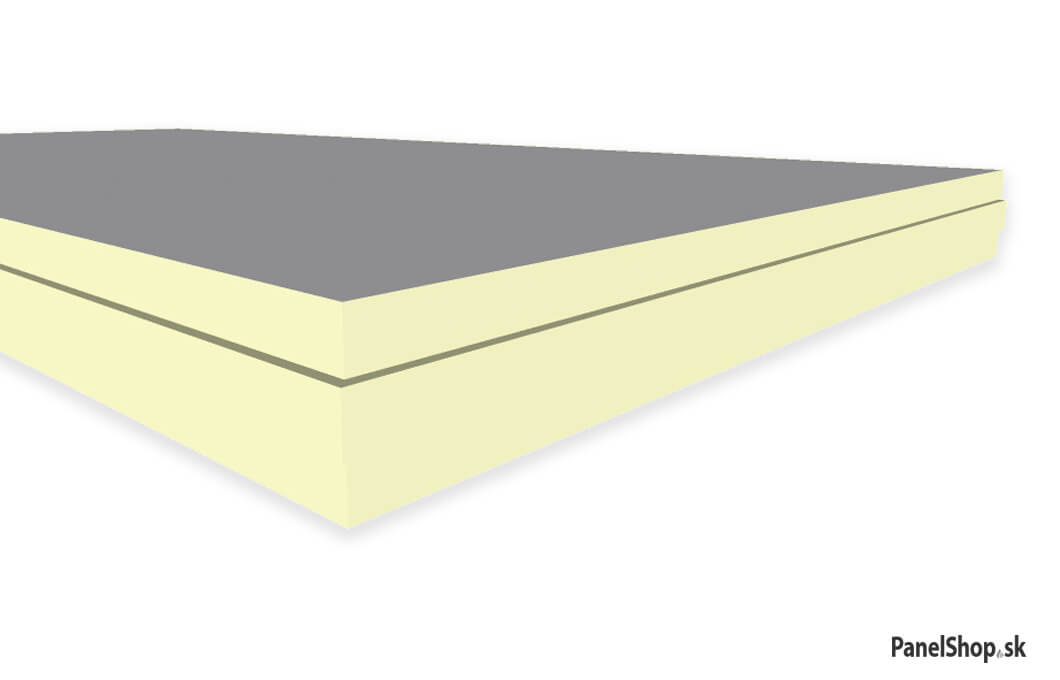

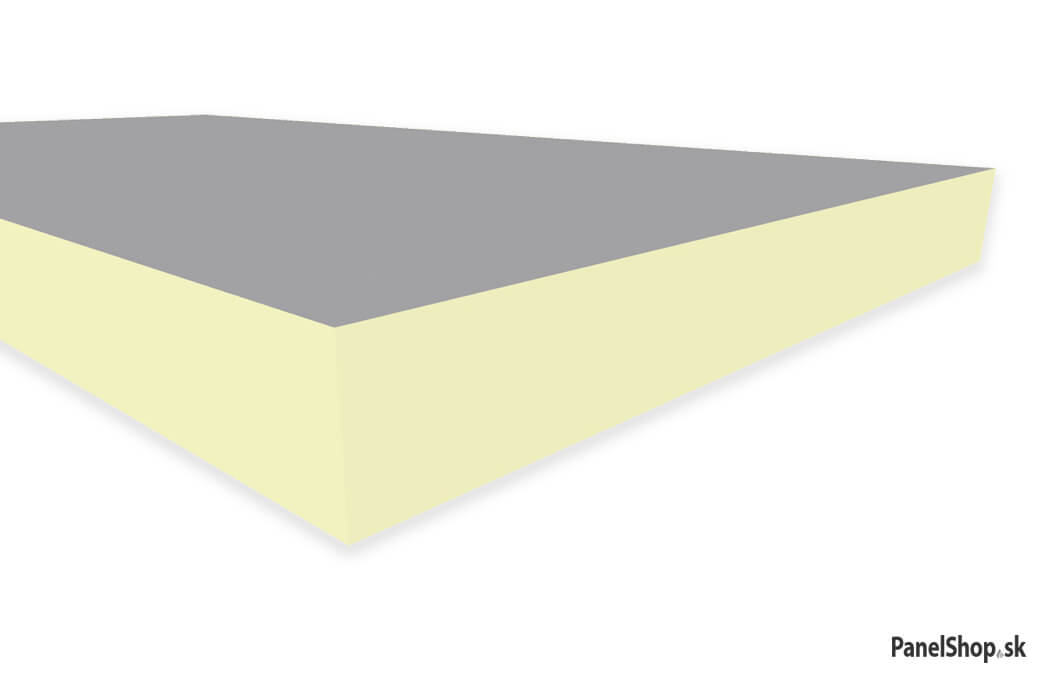

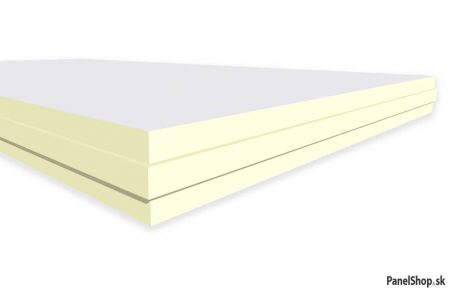

Insulating PIR panel – with mineral fleece (MW)
PIR panel made of double-sided mineral fleece (MW). The core of the panel is made of hardened PIR polyisocyanurate foam.
They are used to insulate roofs, perimeter walls, ceilings and floors of houses, industrial buildings, agricultural buildings, block of flats, storage areas, shops, manufacturing plants, sports halls, freezer and cold storage areas.
Thicknesses are from 20-250mm. The standard dimensions of the boards are 600 x 1200 mm; 1200 x 2400mm. 3 types of connections to choose from.
Guide price: €14.97 without VAT / m2 (80mm) (without VAT)
Delivery time – 2 weeks
Free delivery over 250m²
Product code: IP10…
We offer these variants of insulating panels
PIR panel made of double-sided vapor-tight mineral fleece (MW). The core of the panel is made of hardened PIR polyisocyanurate foam. Thicknesses are from 20-250mm. The standard dimensions of the boards are 600 x 1200 mm; 1200 x 2400mm. 3 types of connections to choose from. Coefficient of thermal conductivity λ = 0.024-0.026 (W / mK). They are waterproof – absorption below 2%. Thermal insulation class A +, A ++. High pressure resistance of 150 kPa (15 tons / m2). Class E fire resistance. Weight 30 kg / m 3. Resistance to organic compounds, insects and rodents. Safe for the environment, both in production and in use.
| Product code | Width (mm) | Link | Standard board dimensions [mm] | Thermal insulation capacity (U [W/m2K]) | Fire Response | Number of panels in the package (pcs) | Price (without VAT) |
|---|---|---|---|---|---|---|---|
| IP10001 | 20mm | straight edge | 600 x 1200; 1200 x 2400(mm) | 1.30 | Class E | 24pcs | 8,26€ exVAT / m2 (80mm)(indicative) |
| IP10002 | 40mm | straight edge, tongue groove, half groove* | 600 x 1200; 1200 x 2400(mm) | 0.65 | Class E | 12pcs | 9,26€ exVAT / m2 (80mm)(indicative) |
| IP10003 | 50mm | straight edge, tongue groove, half groove* | 600 x 1200; 1200 x 2400(mm) | 0.52 | Class E | 10 pcs | 10,26€ exVAT / m2 (80mm)(indicative) |
| IP10004 | 60mm | straight edge, tongue groove, half groove* | 600 x 1200; 1200 x 2400(mm) | 0.43 | Class E | 10 pcs | 12,26€ exVAT / m2 (80mm)(indicative) |
| IP10005 | 80mm | straight edge, tongue groove, half groove* | 600 x 1200; 1200 x 2400(mm) | 0.31 | Class E | 6pcs | 13,97€ exVAT / m2 (80mm)(indicative) |
| IP10006 | 100mm | straight edge, tongue groove, half groove* | 600 x 1200; 1200 x 2400(mm) | 0.25 | Class E | 5pcs | 15,97€ exVAT / m2 (80mm)(indicative) |
| IP10007 | 120mm | straight edge, tongue groove, half groove* | 600 x 1200; 1200 x 2400(mm) | 0.16 | Class E | 5pcs | 17,97€ exVAT / m2 (80mm)(indicative) |
| IP10008 | 150mm | straight edge, tongue groove, half groove* | 600 x 1200; 1200 x 2400(mm) | 0.16 | Class E | 4pcs | 19,97€ exVAT / m2 (80mm)(indicative) |
| IP10009 | 180mm | straight edge, tongue groove, half groove* | 600 x 1200; 1200 x 2400(mm) | 0.13 | Class E | 3pcs | 21,90€ exVAT / m2 (80mm)(indicative) |
| IP10010 | 200mm | straight edge, tongue groove, half groove* | 600 x 1200; 1200 x 2400(mm) | 0.12 | Class E | 3pcs | 23,9€ exVAT / m2 (80mm)(indicative) |
| IP10011 | 220mm | straight edge, tongue groove, half groove* | 600 x 1200; 1200 x 2400(mm) | 0.11 | Class E | 2pcs | 24,9€ exVAT / m2 (80mm)(indicative) |
| IP10012 | 250mm | straight edge, tongue groove, half groove* | 600 x 1200; 1200 x 2400(mm) | 0.10 | Class E | 2pcs | 27,9€ exVAT / m2 (80mm)(indicative) |
| half groove*from 30 mm and orders over 2000 m 2 |
What else will you need
- Roof foil
- Aluminum sealing tape
- Torx fixing screws
- Roofing dowels and screw
 |
Roof foil
Waterproof and vapor-permeable roof film made of polypropylene (suitable for installation on rafters) 42€ / 80m2 (120g/m²) (without VAT) |
|
Aluminum sealing tape
Aluminum sealing tape for PIR panel joints (50 um / 100 mm) 4€ / 100mm (50m) / 1pc (without VAT) |
|---|---|---|---|
|
|
Torx fixing screws (for insulation panels)
Torx fixing screws for wood (lengths from 30-400mm, galvanized, head diameter Φ 6, Φ 8, 3 to 4 pieces of screws for every 1 m2, required length = panel thickness + counter battens + 40mm to rafters) 12,16€ / 50 ks / 160mm (without VAT) |
|
Roofing dowels and screw
Roof dowels and screw for flat roofs made of trapezoidal sheet metal (dowel lengths are 35, 55, 85, 105, 135, 155, 185, 235, 285mm – plate diameter 50mm. Screw lengths 40, 50, 60 , 70, 80, 90, 100, 120, 140, 160mm – for attaching elements to trapezoidal sheet thickness 0.5 – 0.75 mm and 0.5 – 2 x 1.25 mm 40€ / 100ks (without VAT) |
Bank: Slovenská Sporiteľňa
Account number (IBAN): SK53 0900 0000 0003 2426 4520
BIC SWIFT code: GIBASKBX.
Customer service: Mon – Fri: 9:00 to 16:00, +421 910 107 878, info@paneleshop.eu
Other products
PIR panel with double-sided coating of bitumen fabric (glass fabric impregnated with asphalt). The core of the panel is made of hardened PIR polyisocyanurate foam.
Informative price: €15.97 without VAT / m2 (80mm)
PIR panel with double-sided covering of kraft paper (cardboard). The core of the panel is made of hardened PIR polyisocyanurate foam.
Informative price: 13,97€ without VAT / m2 (80mm)
What parameters are important when choosing (PIR panel)
When choosing insulation panels, you need to know the required thickness (from 20-250mm), the amount in m² of what you are going to insulate (roof, wall, floor, terrace) and the type of surface treatment (of 9 types). These 9 types are further divided into two types, vapor-permeable and vapor-tight. For example, a PIR panel with aluminum to insulate the roof is vapor-tight, and a PIR panel with glass fabric to insulate the outer perimeter wall is vapor-permeable (glue and mesh are applied).
